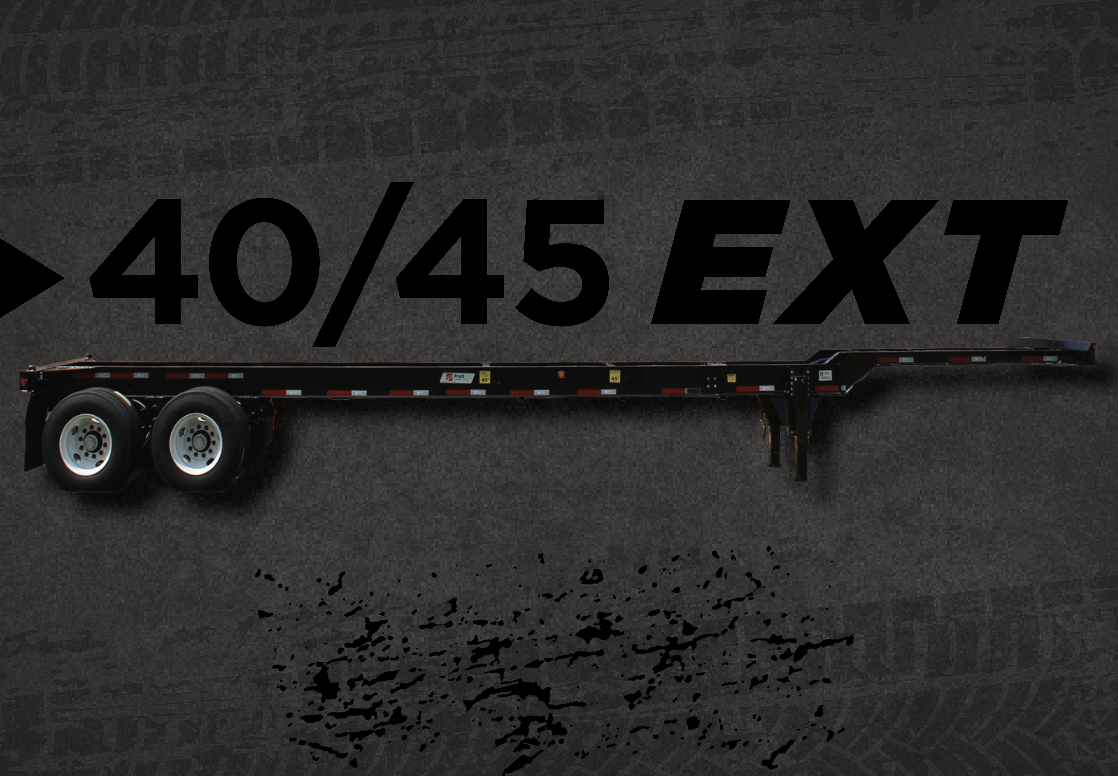

40'/45' EXT CHASSIS

The 40’/45’ Extendable Chassis is a versatile tandem axle chassis designed to carry both 40-foot and 45-foot containers. This chassis is a highly sought-after and essential piece of equipment for fleets across the intermodal industry. Adding a PIC 40’/45’ to your fleet optimizes chassis utilization, reduces overall fleet costs, and increases operational efficiency.

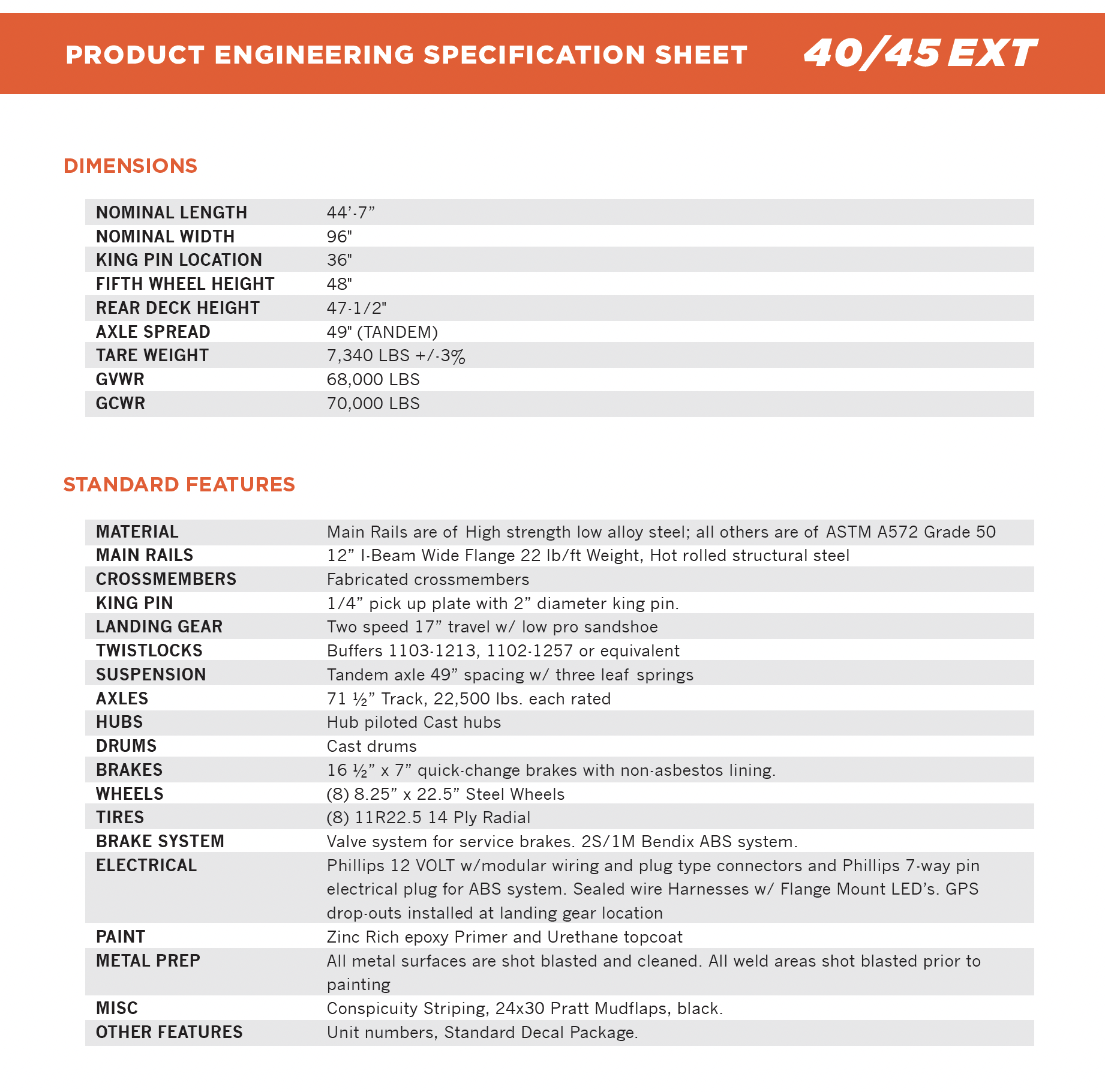

GENERAL SPECIFICATION SHEET

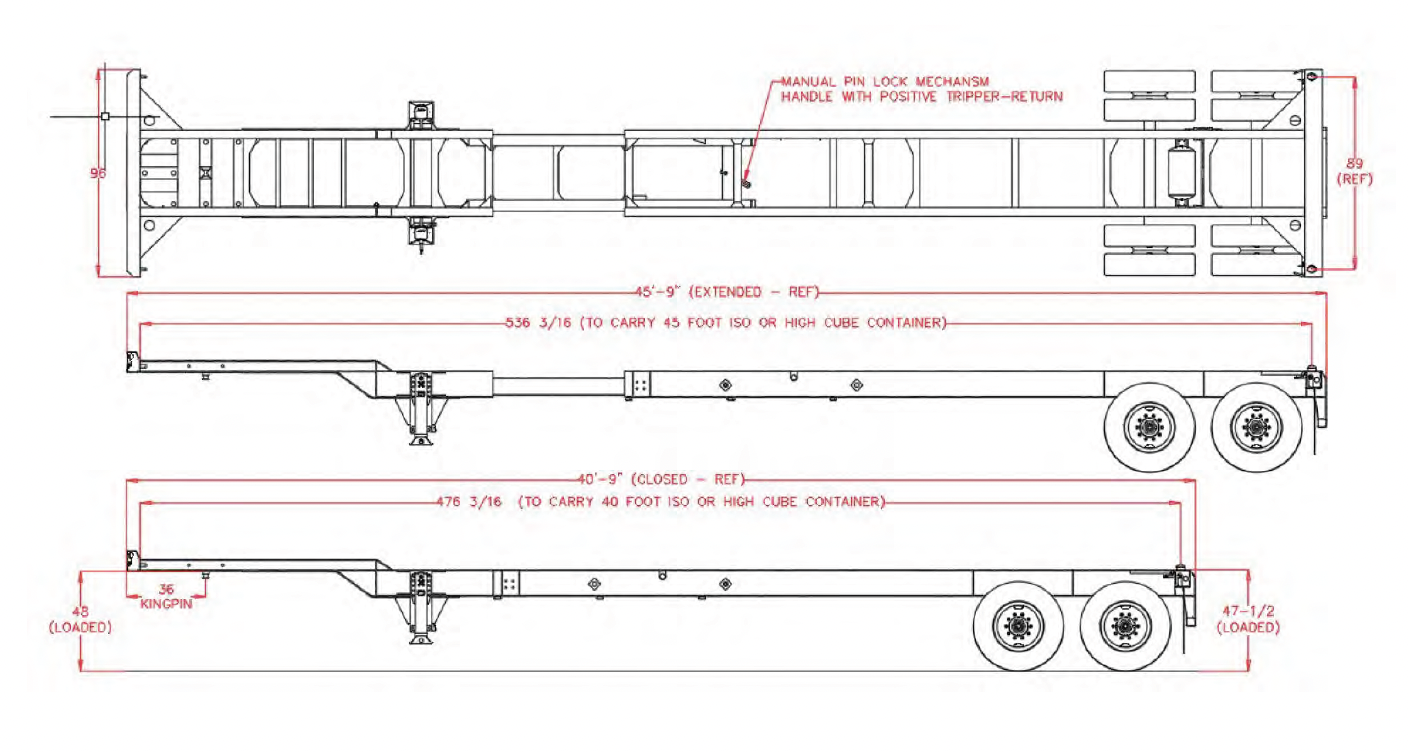

40’/45’ EXTENDABLE DIMENSIONS

-                                        NOMINAL LENGTH
+’-9” (CLOSED)
-                                        NOMINAL LENGTH
+’-9” (EXTENDED)
-                                        NOMINAL WIDTH
+” (OVER WIDTH OVER BOLSTERS)
-                                        KING PIN LOCATION
+” (FROM THE FRONT OF THE FRAME)
-                                        CENTERLINE OF SUSPENSION
+-1/2” (FROM THE REAR OF CHASSIS)
-                                        FIFTH WHEEL HEIGHT
+”
-                                        REAR DECK HEIGHT
+-1/2” (FROM GROUND TO TOP OF REAR BOLSTER LOADED)
-                                        LANDING GEAR LOCATION
+” (FROM THE FRONT OF THE FRAME)
-                                        AXLE SPREAD
+” (TANDEM AXLE)
-                                        TARE WEIGHT
+,340 LBS (+/- 3%) (BASE UNIT ONLY)
-                                        GVWR
+,000 LBS
-                                        FRAME RATING
+,000 LBS

40’/45’ EXTENDABLE STANDARD FEATURES

-                                        MATERIAL
+                                        A572 GR50 high strength low alloy (HSLA or equivalent) steel
-                                        MAIN RAILS
+″ deep (19lbs./foot) ASTM A-572 grade 50
-                                        CROSSMEMBERS
+/16″ fabricated channels
-                                        LANDING GEAR
+″ travel. Heavy-duty low-profile sand shoe with solid axle (Jost A440).
-                                        WHEELS & DRUMS
+                                        Heavy duty 16 ½” x 7” cast steel brake drums. 5HH steel wheels (white).
-                                        TIRES
+R22.5 14 ply tires
-                                        AXLES
+,500# capacity, 71-1/2″ axle track. 16-1/2″ x 7″ quick-change non-asbestos brake lining.
-                                        BRAKES/ ABS SYSTEM
+                                        Brake system: 2S/1M ABS system.
-                                        ELECTRICALS
+                                        Harness: 12 ga. color-coded sealed harness. Tail lamp: Flange mount 4” diameter. Clearance lamp: 3/4” diameter amber and red. License tag lamp: 3/4” diameter clear per standard. Receptacle: 7-way integrated with sealed harness.
-                                        METAL PREPARATION/PAINTING
+                                        All steel surfaces shot pre-blasted to a “commercial blast” cleaning. Primer – Zinc rich epoxy. Topcoat – Polyurethane black.
-                                        MISCELLANEOUS
+                                        Conspicuity striping. 24” X 30” PIC logo mudflaps.
