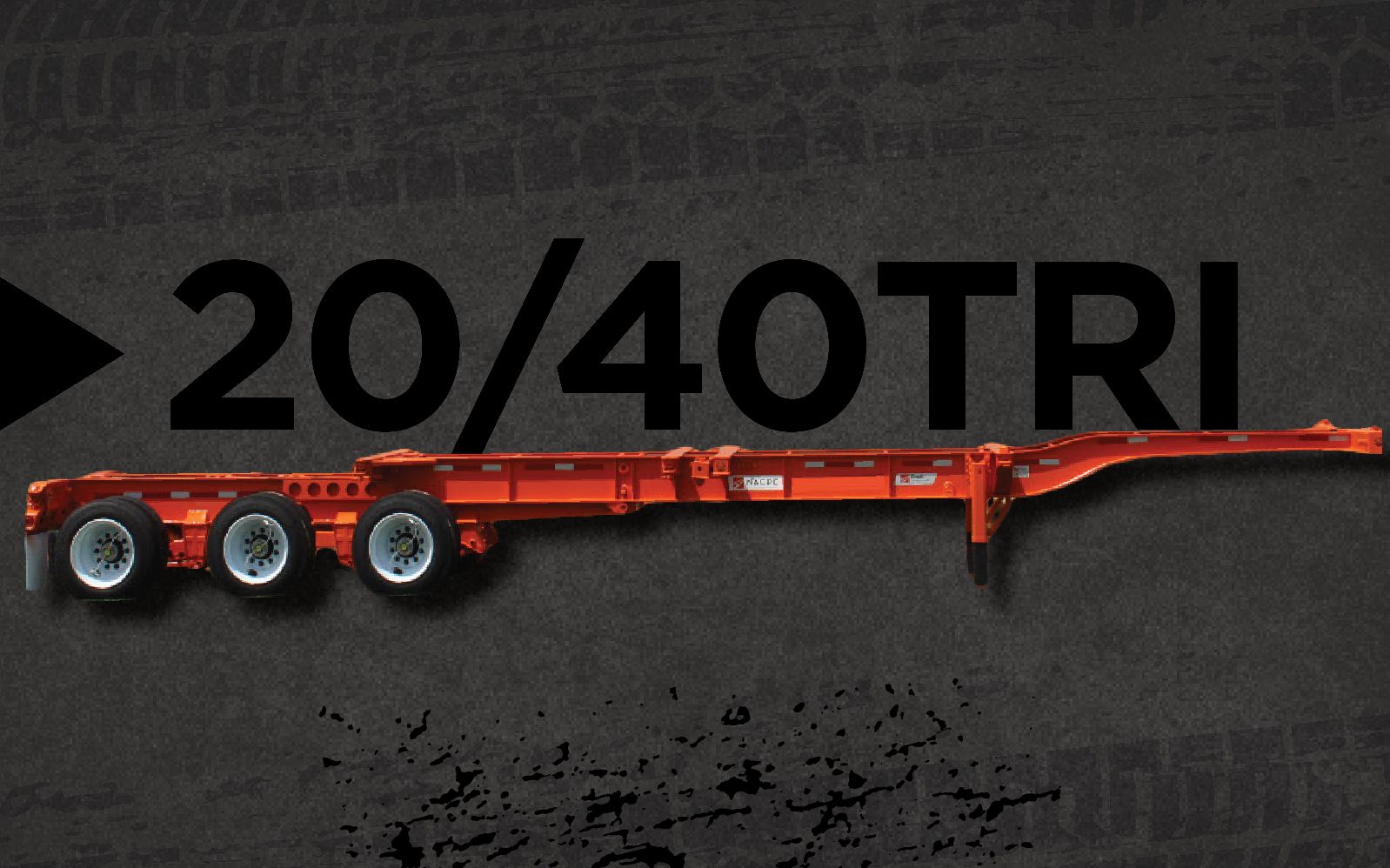

20'/40' COMBO TRI-AXLE CHASSIS DESCRIPTION

The 20’/40’ Combo Tri-axle Chassis is a rugged, high-capacity tri-axle chassis designed for versatility, capable of carrying either a loaded 20-foot or 40-foot container, or two empty 20-foot containers. It supports a Gross Vehicle Weight Rating (GVWR) of 77,000 lbs. for 20′ containers and 85,000 lbs. for 40′ containers, making it ideal for heavier payloads in regions with strict weight regulations.

Equipped with an air-assisted slider pin system, the chassis allows for fast and easy length adjustments, reducing manual labor and boosting efficiency during container transitions.

Optional Roll Stability Support (RSS) enhances safety by reducing the risk of rollovers, protecting cargo and drivers. The gooseneck design ensures proper clearance and balance, delivering consistent performance for demanding intermodal operations.

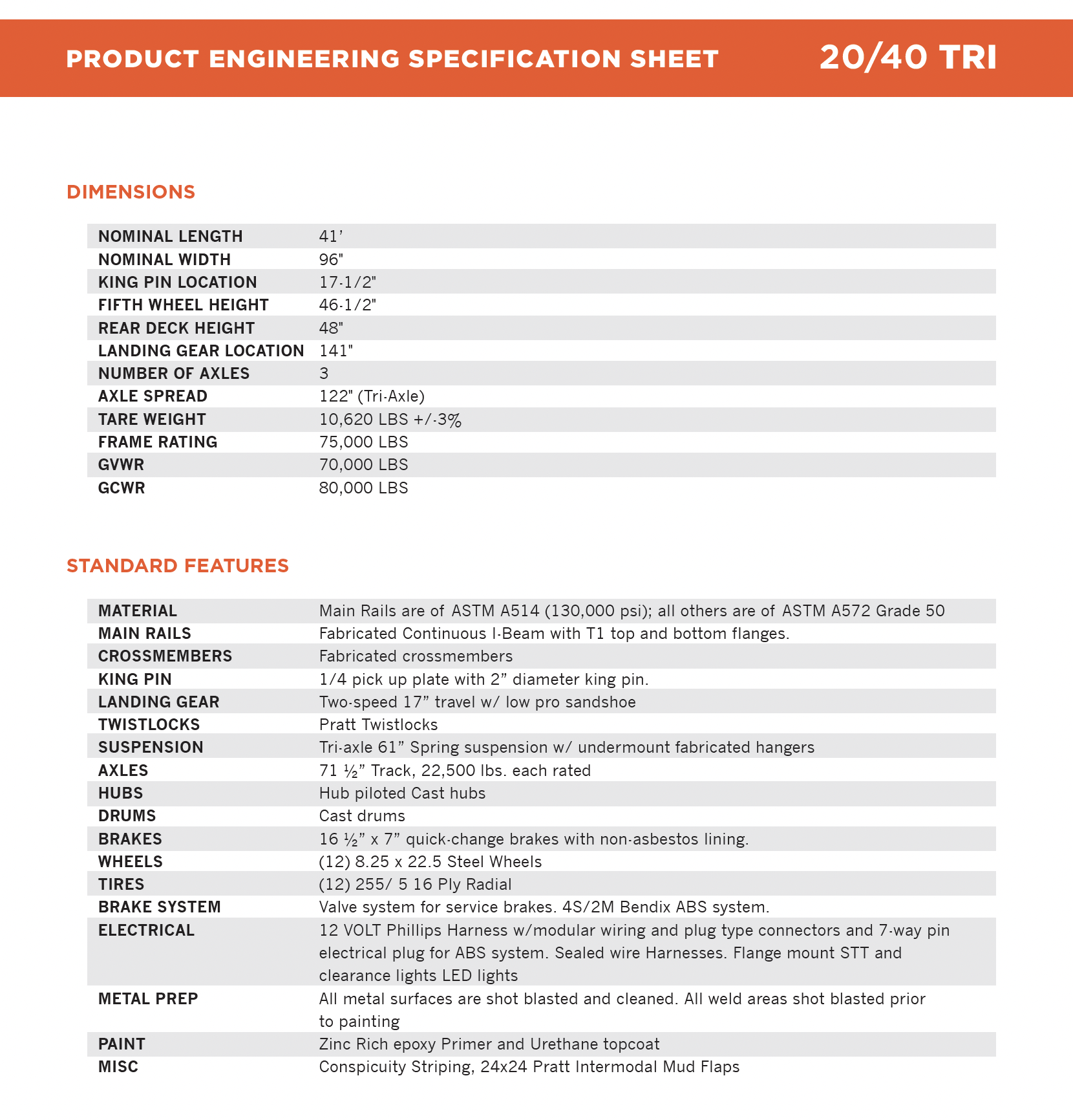

GENERAL SPECIFICATION SHEET

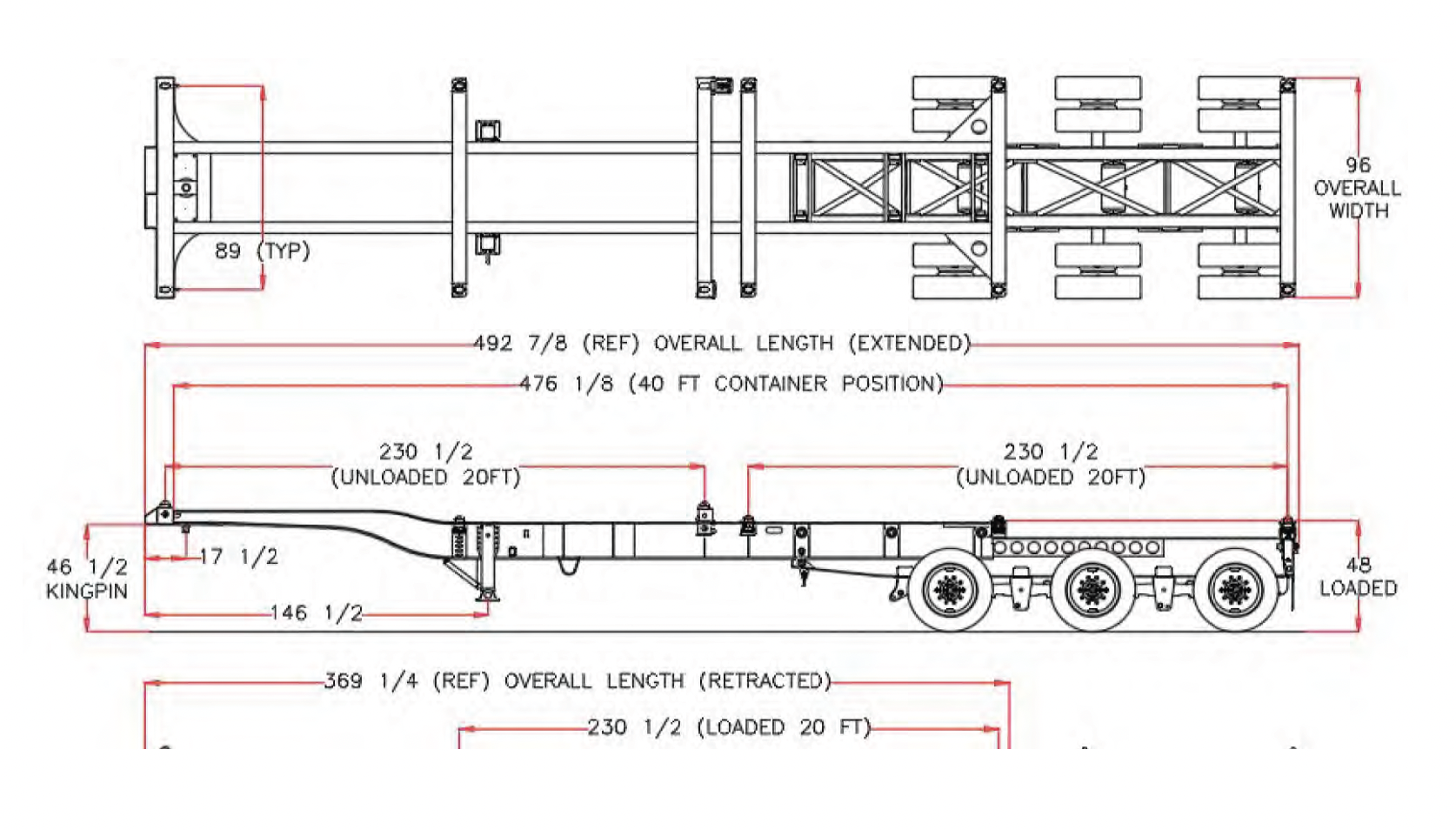

20’/40’ COMBO TRI-AXLE DIMENSIONS

-                                        NOMINAL LENGTH
+’
-                                        NOMINAL WIDTH
+”
-                                        KING PIN LOCATION
+1/2”
-                                        FIFTH WHEEL HEIGHT
+1/2”
-                                        REAR DECK HEIGHT
+”
-                                        LANDING GEAR LOCATION
+1/2”
-                                        NUMBER OF AXLES
-                                        AXLE SPREAD
+” (TRI-AXLE)
-                                        TARE WEIGHT
+,800 LBS +/- 3%
-                                        FRAME RATING
+,000 LBS
-                                        GVWR
+,000 LBS
-                                        GCWR
+,000 LBS

20’/40’ COMBO TRI-AXLE STANDARD FEATURES

-                                        MATERIAL
+                                        Fabricated components are ASTM A572 grade 50
-                                        MAIN RAILS
+                                        I-beams fabricated with high strength steel webs and T1 flanges
-                                        KING PIN
+/4” pick-up plate with 2” diameter king pin
-                                        LANDING GEAR
+                                        Two speed 17” travel with low pro sand shoe
-                                        TWISTLOCKS
+                                        Retractable and flip-up type
-                                        SUSPENSION
+                                        Tri-axle 61” spacing; spring ride suspension
-                                        AXLES
+½” track; 22,500 lbs. each rated
-                                        HUBS
+                                        Hub piloted cast hubs
-                                        DRUMS
+                                        Cast drums
-                                        BRAKES
+½” x 7” quick-change brakes with non-asbestos lining
-                                        WHEELS
+                                        (12) 8.25” x 22.5” steel wheels
-                                        TIRES
+                                        (12) 255/70R22.5 16 ply radial
-                                        BRAKE SYSTEM
+                                        Valve system for service brakes; 4S/2M ABS system; optional roll stability system available
-                                        ELECTRICAL
+volt w/modular wiring and plug type connectors; 7-way pin electrical plug for ABS system
-                                        PAINT
+                                        Zinc rich epoxy primer urethane top coat
-                                        MISC
+                                        Conspicuity striping; 24” x 24” white poly PIC mudflaps
-                                        OPTIONAL
+                                        PSI tire inflation system; unit numbers; standard decal package
