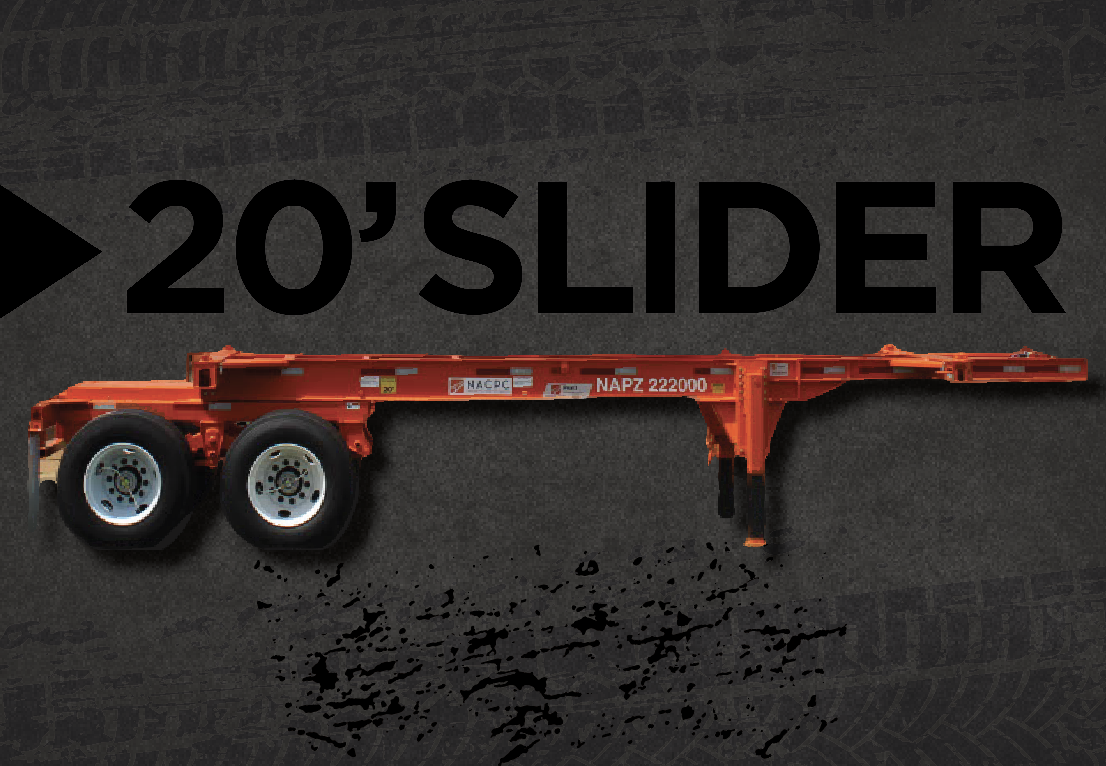

20' SLIDER CHASSIS DESCRIPTION

The 20’ Slider Chassis is a versatile tandem slider chassis engineered for the efficient, flexible transportation of loaded 20-foot containers. Its sliding tandem axle configuration allows for easy adjustment of the wheelbase, providing optimal weight distribution and maneuverability to meet diverse road conditions and legal requirements. This design enhances operational flexibility, making it ideal for various drayage and over-the-road applications.

GENERAL SPECIFICATION SHEET

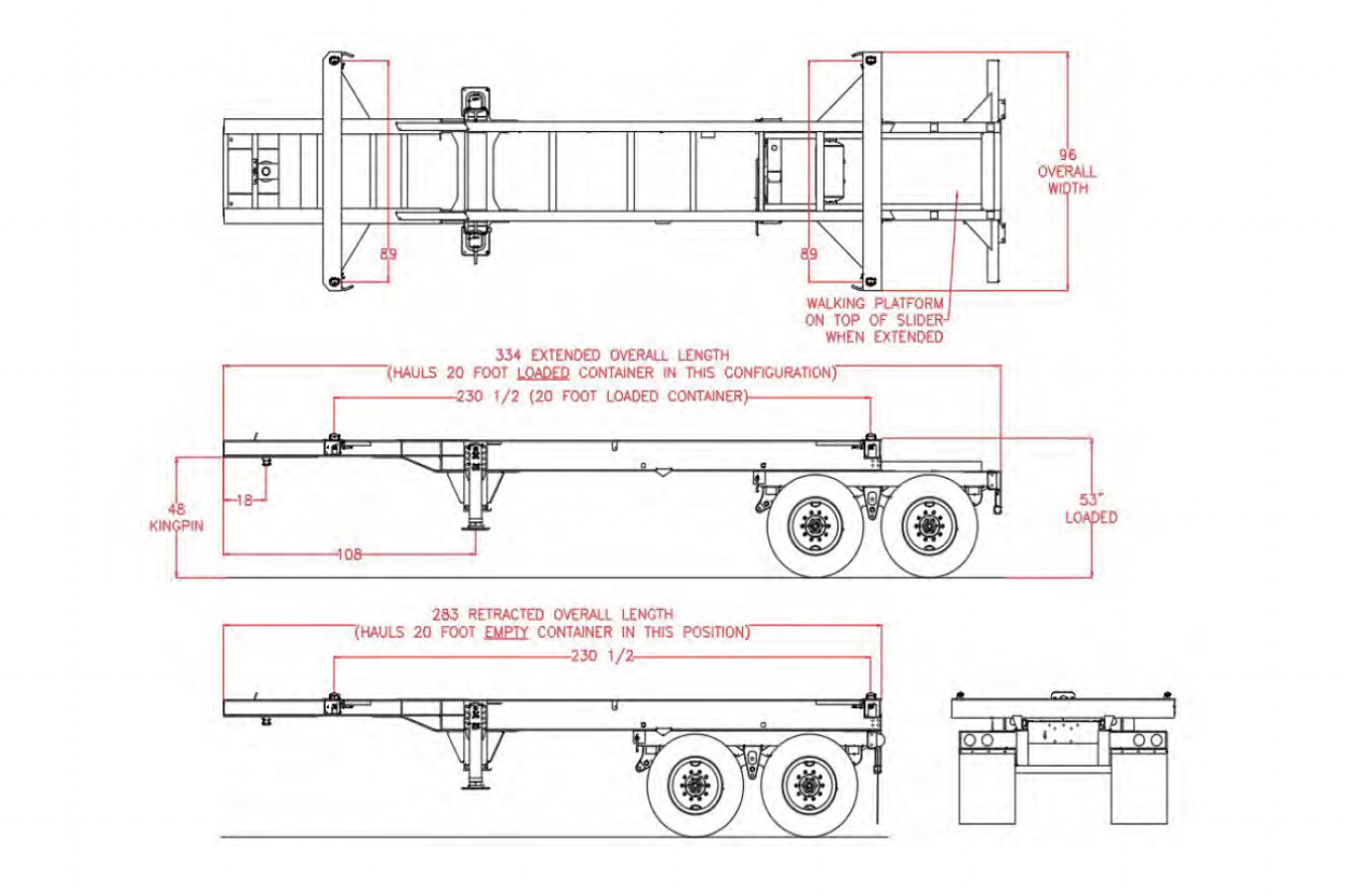

20' SLIDER DIMENSIONS

-                                        NOMINAL LENGTH
+’ 9”
-                                        NOMINAL WIDTH
+”
-                                        KING PIN LOCATION
+”
-                                        FIFTH WHEEL HEIGHT
+”
-                                        REAR DECK HEIGHT
+.5”
-                                        LANDING GEAR LOCATION
+”
-                                        NUMBER OF AXLES
-                                        AXLE SPREAD
+” (TANDEM)
-                                        TARE WEIGHT
+,640 LBS +/- 3%
-                                        FRAME RATING
+,000 LBS
-                                        GVWR
+,000 LBS

20' SLIDER STANDARD FEATURES

-                                        MATERIAL
+                                        High strength, low alloy steel main rails; all others are of ASTM A572 grade 50
-                                        MAIN RAILS
+” I-beam wide flange; hot rolled structural steel
-                                        CROSSMEMBERS
+                                        Fabricated crossmembers
-                                        KING PIN
+/4″ pick-up plate with 2″ diameter king pin
-                                        LANDING GEAR
+                                        Two speed 19” travel
-                                        SLIDER
+                                        PIC friction slider
-                                        TWISTLOCKS
+                                        PIC twistlocks
-                                        SUSPENSION
+                                        Tandem axle with three leaf springs
-                                        AXLES
+½” track; 22,500 lbs. each rated
-                                        HUBS
+                                        Hub piloted cast hubs
-                                        DRUMS
+                                        Cast drums
-                                        BRAKES
+½” x 7” quick-change brakes with non-asbestos lining
-                                        WHEELS
+                                        (8) 8.25” x 22.5” steel wheels
-                                        TIRES
+                                        (8) 11R22.5 14 ply radial
-                                        BRAKE SYSTEM
+                                        Valve system for service brakes; 2S/1M ABS system
-                                        ELECTRICAL
+volt w/modular wiring and plug type connectors; 7-way pin electrical plug for ABS system
-                                        METAL PREP
+                                        All metal surfaces and weld areas are shot blasted and cleaned prior to painting.
-                                        PAINT
+                                        Zinc rich epoxy primer urethane top coat
-                                        MISC
+                                        Conspicuity striping; 24” x 30” white PVC PIC mudflaps or customer supplied
